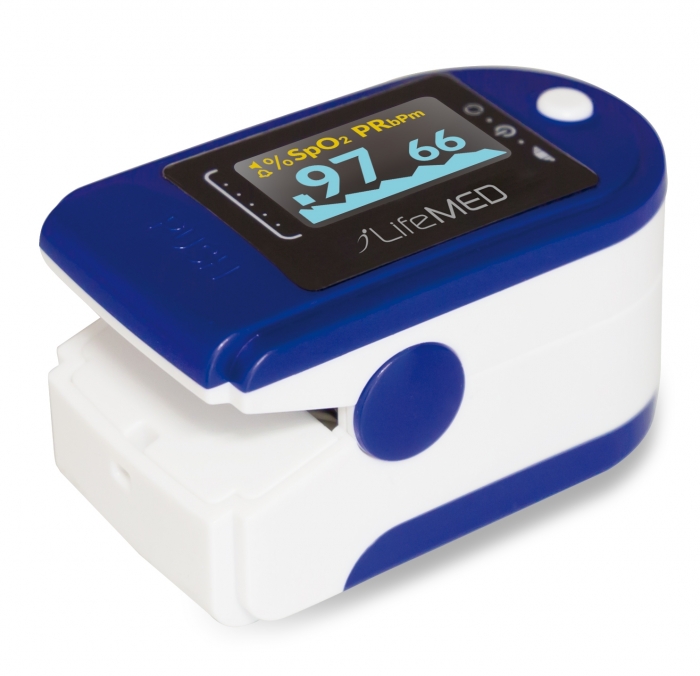

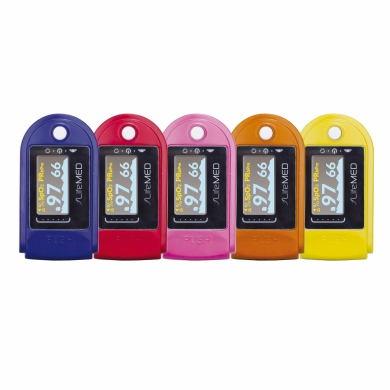

Portable finger pulse oximeter with perfusion index

cod. SAT-200PI

Portable finger pulse oximeter with perfusion index

Portable instrument to detect the amount of oxygen linked to haemoglobin in the blood and heart rate in a non-invasive way. Suitable for short-term measurement on adults and children weighing at least 10 kg, in hospitals, at home and for patients undergoing oxygen therapy. The SAT-200PI has a manually adjustable brightness LCD colour display. Thanks to a built-in accelerometer, the display can automatically rotate according to the position of the finger, in 4 different positions. Detected parameters: oxygen saturation; heart rate; perfusion index. Display of the plethysmographic wave, intensity of the pulsatile signal and the state of charge of the batteries. Characteristics: fast detection in approximately 5 seconds; built-in accelerometer; works with 2 mini-stylus batteries with an autonomy of 20 hours in continuous use; automatic shutdown after 5 seconds of non-use to preserve battery charge.

Detected values
Oxygen blood saturation, perfusion index and heart rate
Measurement method
Infrared spectrophotometer
Measurement range
SpO2 35% - 99% - heart rate 30 - 240 beats/minutes
SpO2 accuracy
+/- 2% between 70% and 99% - lower than 70% non-specified
Heart rate accuracy
+/- 2 beats/minutes or +/-2%
Power supply
nr. 2 alkaline batteries of 1,5 V - type AAA
Dimensions
57 (L) x 32 (A) x 31 (P) mm
Weight
50 g batteries included
